3025 Panel / Phenolic Resin Cotton Fabric Laminate Sheets

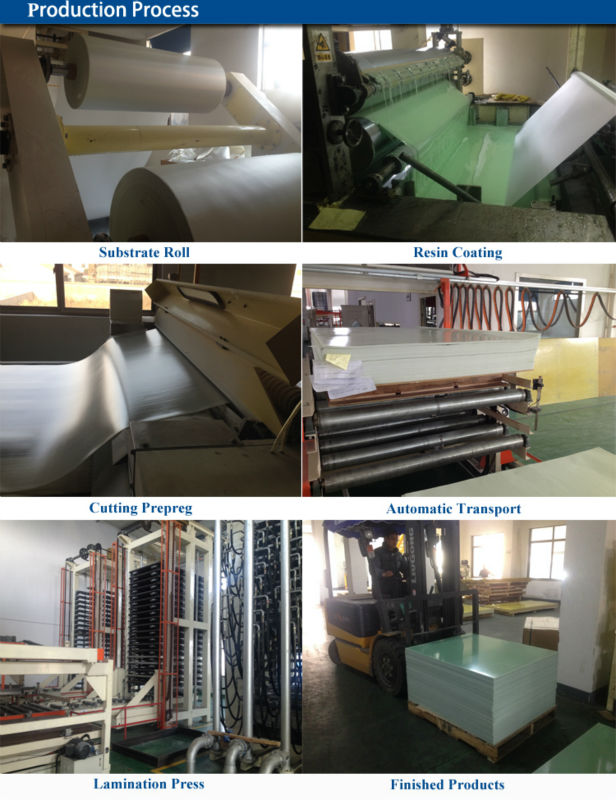

3025 Phenolic Resin Cotton Fabric Laminate Sheet is the combination of hard and high density material and impregnated paper using phenolic resin or fiber glass cloth and pressed under heat and pressure. This industrial laminate normally consists of fiber paper, cotton fabric, chemical fiber yarn and fiber glass, etc. When specific heat and pressure are applied to these layers, a chemical reaction combines the layers into a high-pressure thermosetting plastic.

Send Inquiry

Product Description

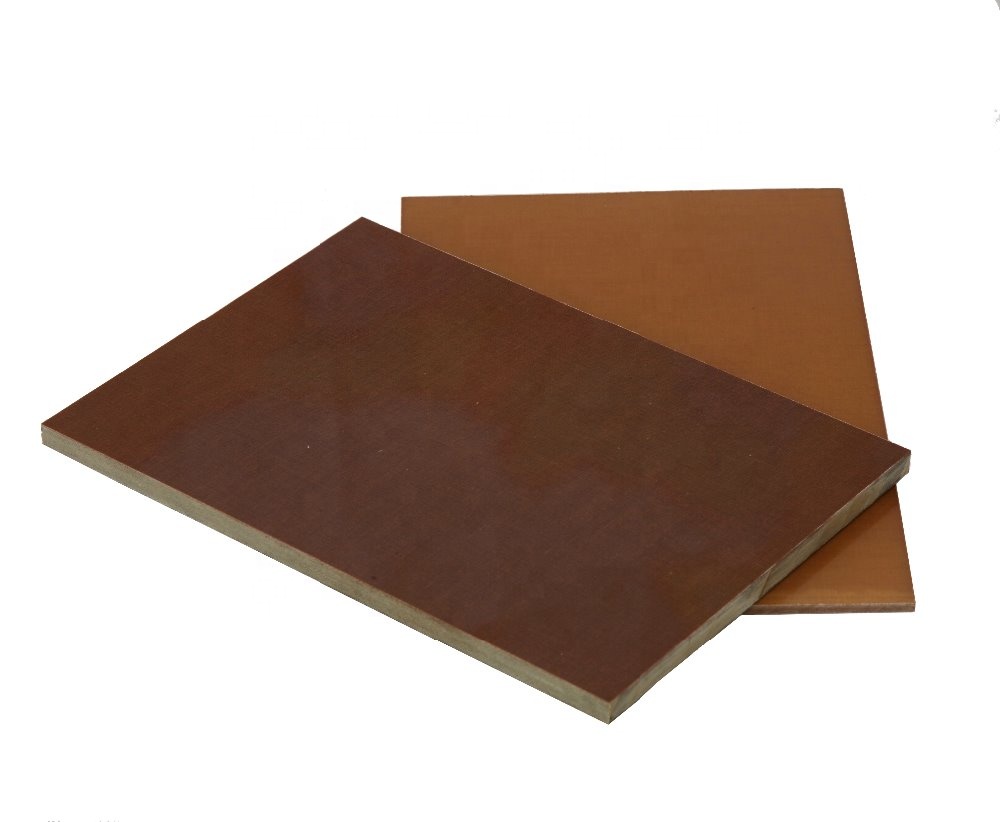

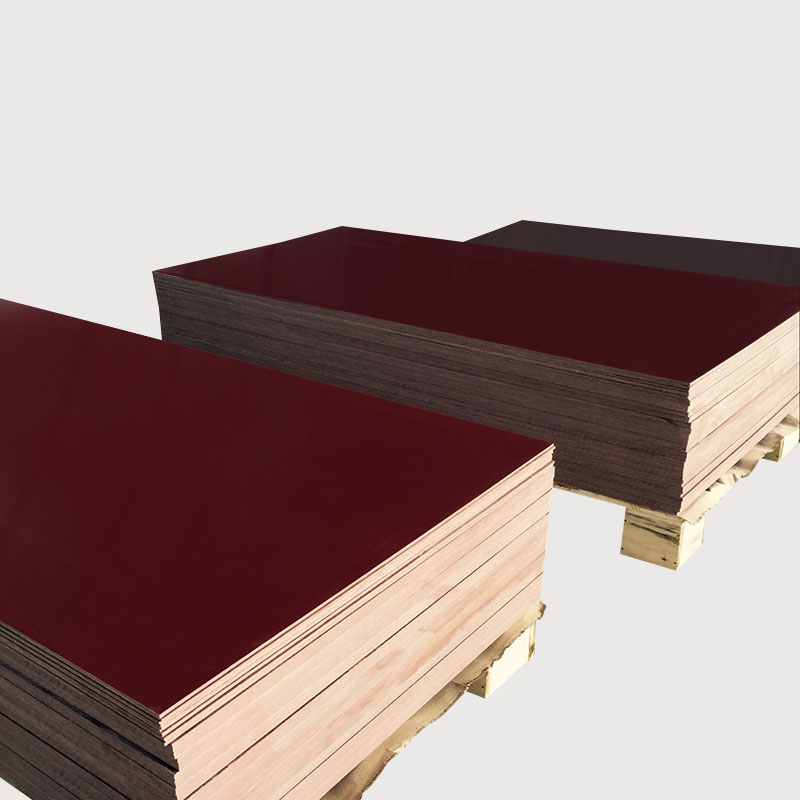

3025 Panel is made of phenolic resin and cotton cloth.

Characteristics and applications for Panel Bakelite / Phenolic Cotton Cloth laminated Sheet 3025:
Good electric performance and mechanical property under normal condition. Fit for insulation parts which needs certain mechanical performance and electric performance for machine, motors and electrical apparatus and they also be used in the transformer oil.

Appearance for Panel Bakelite / Phenolic Cotton Cloth laminated Sheet 3025:

Surface should be flat and velvet, without wrinkle and crack, avoid other disfigurement, such as scratch, impress, a few spot is available.

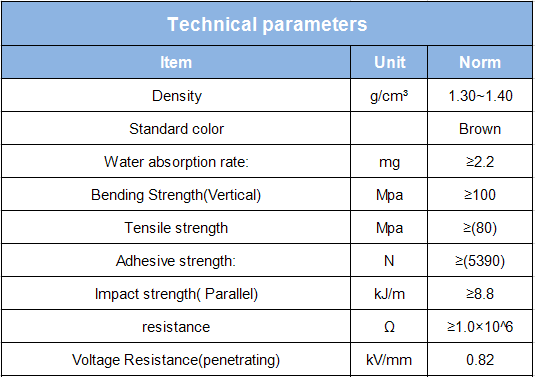

Specifications:
1)Thickness:0.5mm-100mm.
2)Size:1000x2000mm or customize according customer's requirement.
3)Payment terms: T/T or L/C at sight.

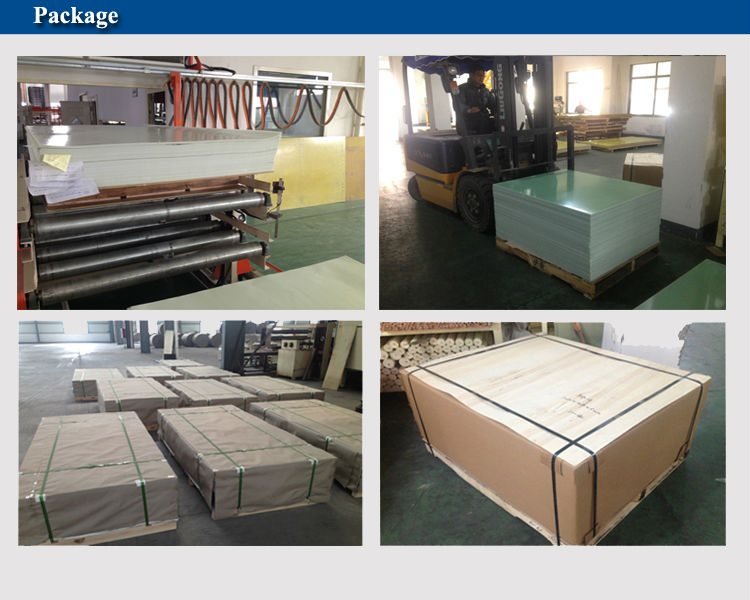

4)Package: wooden pallet,Carton or according to customer requirements.
5)Standard Color: Brown.
6)Delivery time:10-20 days




Customize service:
We have our senior engineers team and introducing the advanced technology and equipment (carving machines, CNC machine, machining center, Lathe, Milling machine, Routing machine, Threading machine, Board cutting maching etc.) to make products according to customer's drawing, data, or samples.
