FR-5 Epoxy Glass Cloth Laminated Sheets

FR-5 Epoxy Glass Cloth Laminated Sheets

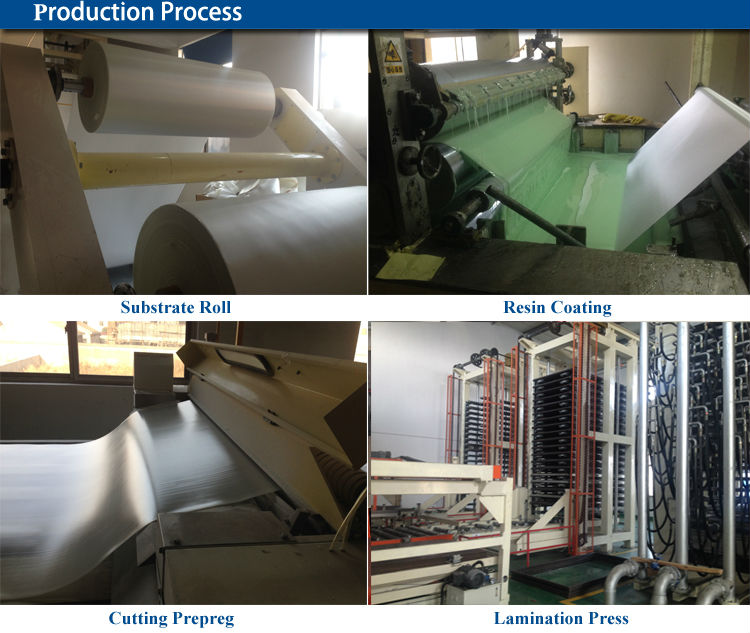

FR-5 Epoxy glass laminated sheet is electrical alkali-free glass woven fabric base impregnated epoxy resin binder by processing under pressure and heat.FR-5 is accordance with the following international standards: IEC60893 EPGC202/NEMA LI-1:FR4/DIN 7735 HGW 2372.1/BS 3953 EP-4

Send Inquiry

Product Description

Specifications:

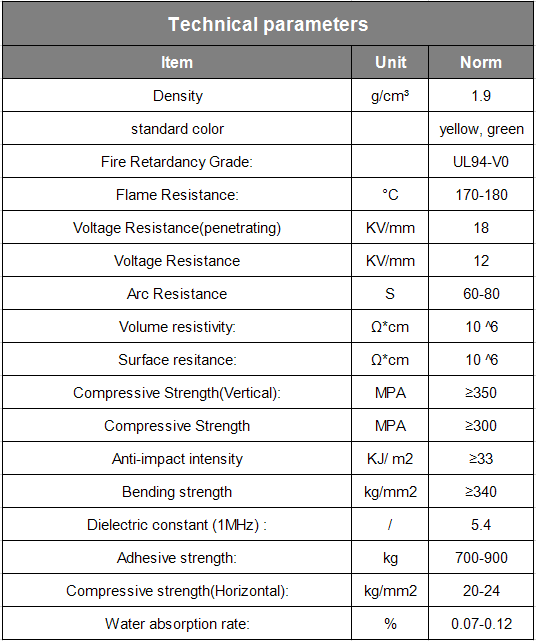

FR-5 Epoxy glass laminated sheet has High mechanical properties, Electrical properties, High thermal mechanical strength. Products are widely used in mechanical, electronic, electrical equipment, insulation parts and components.

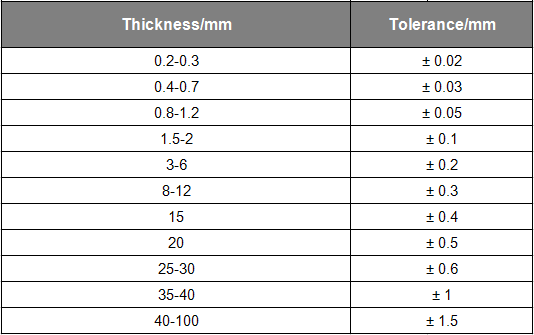

1)Thickness:0.1mm-100mm
2)Size: 1030x1230mm,  1030*1030mm
3)Payment terms: T/T or L/C at sight

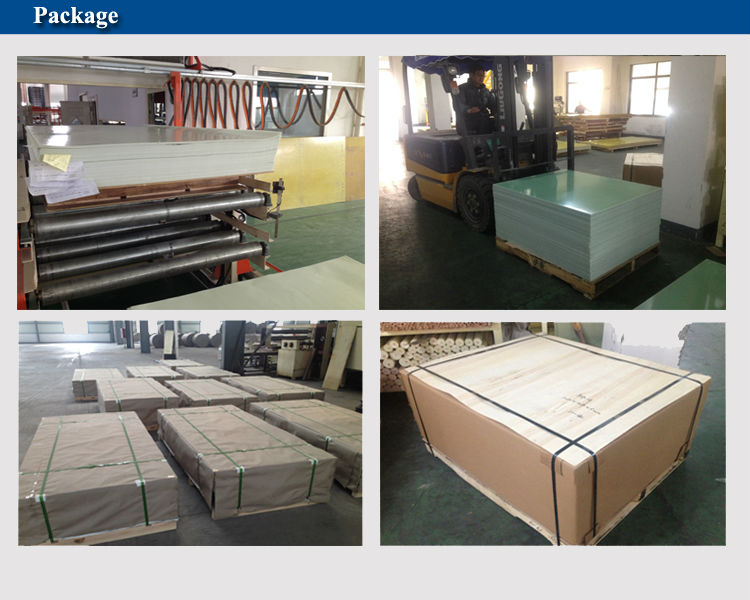

4)Package: wooden pallet, Carton or according to customer requirements

5)Delivery time:10-20 days





Standard Color:
Yellow, green, black, red, light green, brown, orange.
Other color can be customized according to customer requirements




Hot Tags: FR-5 Epoxy Glass Cloth Laminated Sheets China, Manufacturers, Suppliers, Factory
