G10 Epoxy Glass Fiber Sheets with High Voltage

G10 Epoxy Glass Fiber Sheets with High Voltage

G10 Epoxy laminated sheet is electrical alkali-free glass woven fabric base impregnated epoxy resin binder by processing under pressure and heat. G10 added with flame retardants agent comes FR-4. G10 material is accordance with the following international standards: IEC60893 EPGC201/NEMA LI-1:G10/DIN 7735 HGW 2372/BS 3953 EP-3

Send Inquiry

Product Description

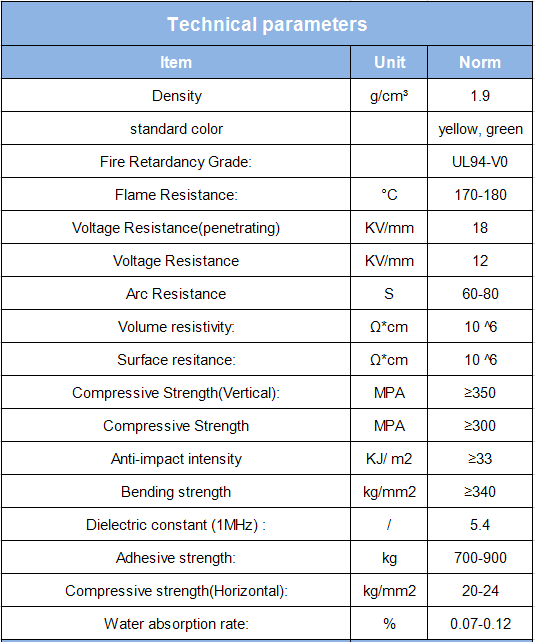

Specifications:
G10 Epoxy laminated sheet has high mechanical and dielectric properties, Good heat resistance, Work continuously at 170 degrees, Waterproof, Low water absorption, Flame retardant.

1)Payment terms: T/T or L/C at sight
2)Package: wooden pallet, Carton or according to customer requirements

3)Delivery time:10-20 days





Standard Color:
Yellow, green, black, red, light green, brown, orange.
Other color can be customized according to customer requirements


Applicaton:
insulation parts for transformer, Electronic apparatus, Water conservancy, Switch gear, Industrial furnace, Semiconductor, Marine, Air, Nuclear power, Insulation spacer, Awater conservancy and hydropower.
